Universal laser scanner LaserProbe4500 on a High-Z CNC machine


LaserProbe4500 universal 3D laser scanning solution for CNC machines

With the LaserProbe4500 you can easily scan almost any objects that fits within the size of your CNC machine work area. It is easy to install and easy to run.

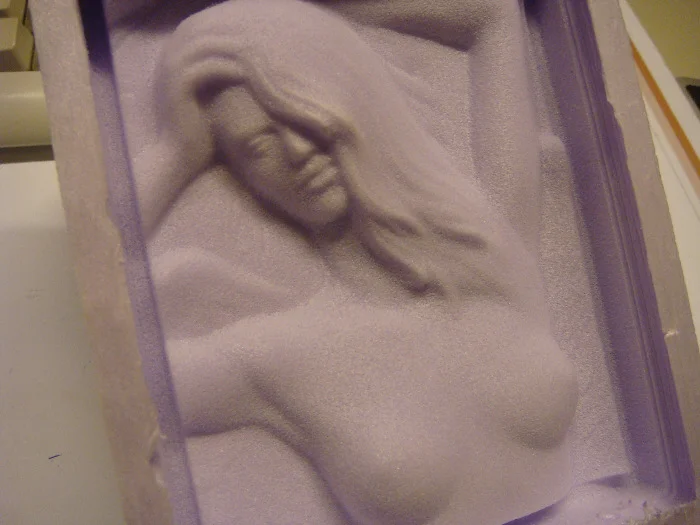

The scanner generates a point cloud of XYZ data points that also can be saved as an STL file for direct milling / routing after the scan is completed.

If you want/need to modify the model, you can save it and use a modeling program such as the FREE Meshmixer to make any changes necessary.

This system can be used on almost any CNC machine making it a universal solution for laser 3D scanning.

For scanning large areas, this is a perfect solution.

If you are looking to scan smaller objects up to 500 mm long, then we can also recommend the new HP 3D Structured Light Scanner Pro S3.

LASER SCANNER 4500


  • Universal design - use on any CNC
  • Resolution 0.03 mm
  • Easy to use
  • Software included
  • Save scans as point cloud or .stl




 Laser Scanner 4500 manual

Laser Scanner 4500 manual

 Laser Scanner connection diagram

Laser Scanner connection diagram

 How to switch language in Dorgonia laser scanner software

How to switch language in Dorgonia laser scanner software



Description Value
Materials that can be scanned Anything that is not transparent or reflective.
Raster scan for XY any
Field scan for XY any
Scanning depth, mm 100 or customized as desired *
Average scanning speed, points / second 4500
Average scan time per 100 x 100 mm 6-10 minutes
Base distance, mm 140
Penetration, mm 100
Overall height from machine table, mm 240
Deviation, mm ± 0,1
Resolution, mm 0,03
Maximum operating speed, points / second 10000
Laser Type 3 mW, wavelength 660 nm
Protection classification IP67
Operating temperature, ° C negative 10° C to 60° C
Time for ongoing work unlimited
Full and final dimensions, mm see manual
Weight, g 100
SOURCE: CNC-STEP e.K


System Requirements:

  • Processor: not lower than Intel Pentium 4 2.0GHz
  • RAM: not less than 1024 MB (recommended is 4096MB).
  • Storage space: not less than 20 GB, NFTS file system is required.
  • Video card: ATI / NVidia and not less than 256MB video memory.
  • Operating system: Windows 2000 / Windows XP up to WIN7
  • Further: USB 2.0 is required
