Laser engraver for High-Z CNC machines



Universal laser module for engraving

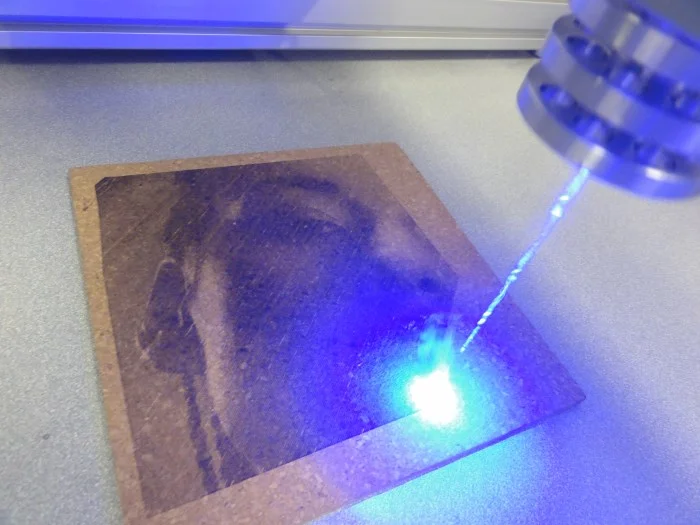

Turn your CNC machine into a laser engraving machine, and mark a range of soft materials including leather, wood, laser ply, and slate.

When purchased for one of our machines, you get a plug and play system with CAD/CAM/control software included and tested. If you want to use it with other machines, make sure your CNC control features PWM (Pulse Width Modulation).

This module was designed for hobby users and small batch production. If you need a laser for high volume output, please contact us for advice.

The laser diode is rated for 3 watts, but to ensure maximum durability, we control it with 2.2 watts. It also has an oversized aluminum heat sink for the same reason.

Safety

The laser module itself is delivered in a protective case to eliminate damage during shipping and moving.

Safety glasses are always included, and the unit is connected via a separate on/off box that includes a key switch.

The recommended software, which we provide with each machine purchase, is ConstruCAM and WinPCNC USB.

Given the higher speeds needed for this unit, we always recommend the High-Z Turbo or the T-Rex series.

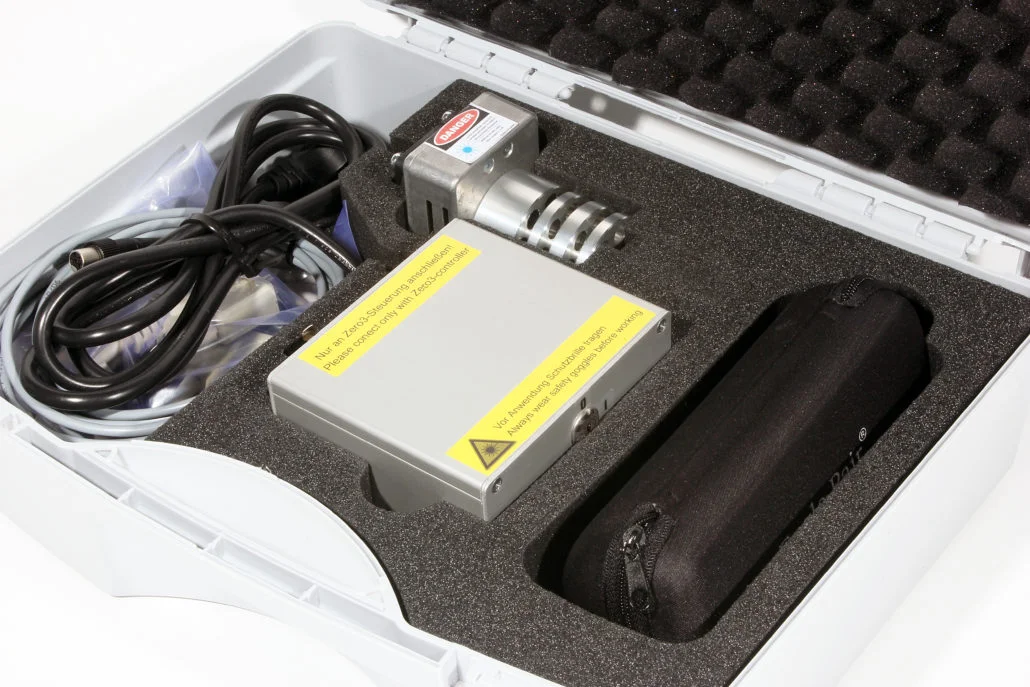

Delivery

  • 1 x 2.2W laser engraving module with heat sink
  • 1 x Control module with key switch
  • 1 x Quick start instructions
  • 1 x User manual
  • 1 x Cable set
  • 1 x Case with foam inserts


LASER ENGRAVER


  • 2.2W blue light diode laser
  • Rugged construction
  • Oversized heat sink for longevity
  • Engrave text, vector graphics, and photos
  • Engrave a wide range of soft materials
